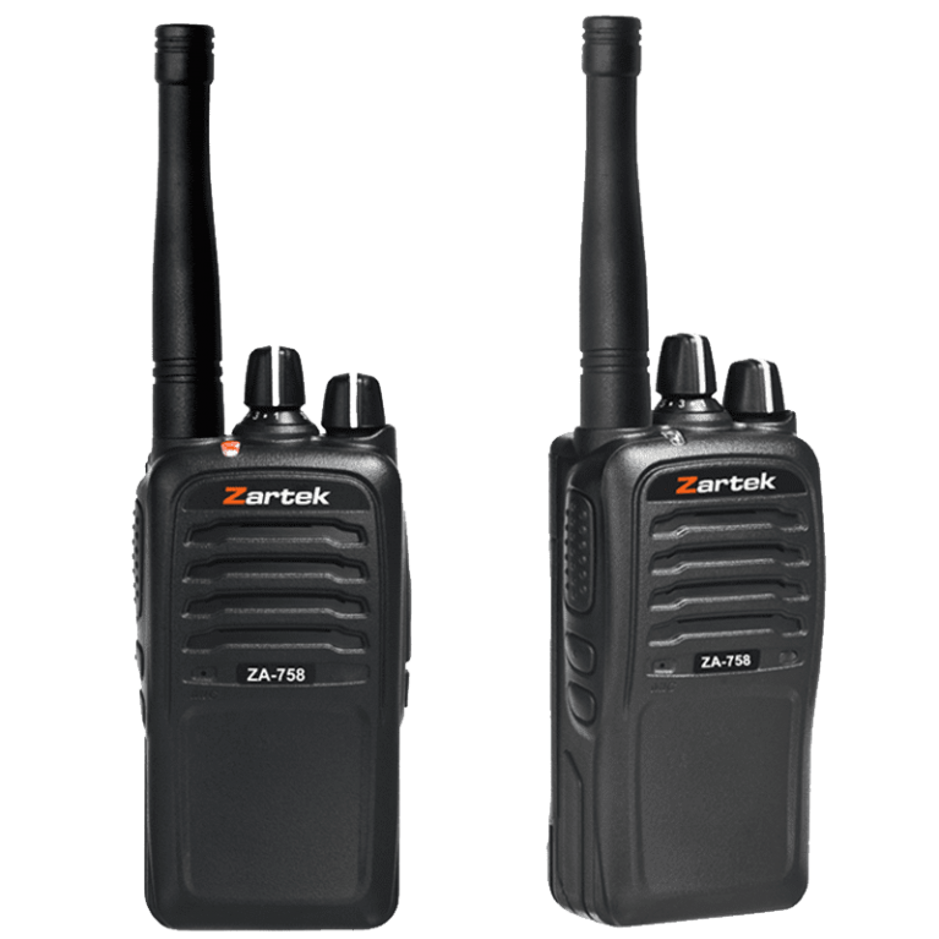

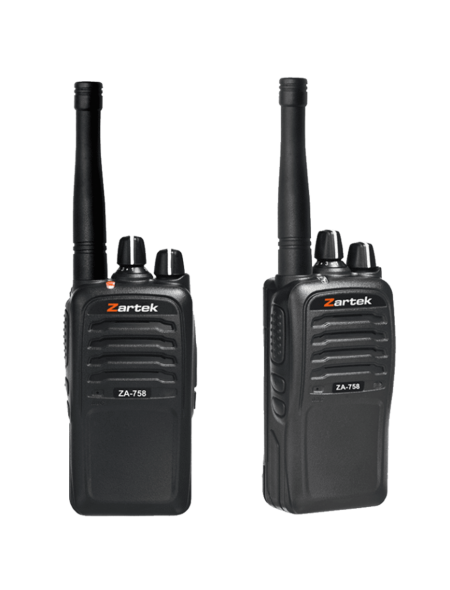

ZA-758 PMR UHF HANDHELD TRANSCEIVER

• PRE-PROGRAMMED 16 CHANNELS
• POWER OUTPUT 500MW LICENSE FREE
• TONES 50 CTCSS / 105 DCS
• CRYSTAL CLEAR LOUD AUDIO
• HIGH IMPACT CASING, COMPACT & LIGHTWEIGHT
• LONG BATTERY LIFE (30 HRS ON AVERAGE USE)
• CHANNEL ANNOUNCE & LOW BATTERY ALERT
• EXTERNAL MICROPHONE / SPEAKER JACK
• TWO FUNCTIONAL SIDE KEYS
• MULTI-FUNCTIONS:
• VOX, VOX SENSITIVITY & DELAY
• SCRAMBLER, CALL RING,
• EMERGENCY ALARM, PRIORITY SCAN, COMPANDER,
• BATTERY LEVEL INDICATOR, PTT ID DTMF (PROGRAMMABLE)
• CHANNELS / FUNCTIONS PROGRAMMABLE VIA PC (OPTIONAL)
• PROGRAMMING READ PASSWORD PROTECTED (OPTIONAL)
• EXTERNAL CAR / HOUSE ANTENNA KIT (OPTIONAL)
• COMPATIBLE TO ZARTEK ZA705 OR PRO5 (464 MHZ) & PRO8 RADIO (446 MHZ)
• APPROVED BY ICASA
• 1 YEAR LIMITED WARRANTY
• IDEAL FOR SECURITY USE, FACTORIES, FARMING, HOTELS, EVENTS & HEAVY DUTY USE.

RANGE: (TERRAIN DEPENDENT):
INDOORS: 600M-1.2KM
OUTDOORS: 2-6KM
ELEVATED LINE-OF-SIGHT: 10-30KM

COMPATIBLE TO ALL LICENSE-FREE RADIOS
446 MHZ (8 FREQ.) & 464 MHZ (5 FREQ.):
ZARTEK ZA-748, ZA-725, ZA-705, ZA-708, COM8 & PRO8 RADIO (446 MHZ)
ZARTEK PRO5 & ZA-200 RADIO (MODEL# 21-1860AF) (464 MHZ)

INCLUDED ITEMS:
ZA-758 HANDHELD UHF FM TRANSCEIVER
RAPID PLUG-IN CHARGER ADAPTOR
LI-ION BATTERY PACK 1600MAH
BELT CLIP
DETACHABLE RUBBER ANTENNA
USERS MANUAL

DEFAULT PROGRAMMING:
SIDE KEY 1: MONITOR OPEN SQUELCH
SIDE KEY 1: HOLD IN TO CALL
SIDE KEY 2: VOX TOGGLE (VOICE ACTIVATED TRANSMIT : HANDS-FREE)
