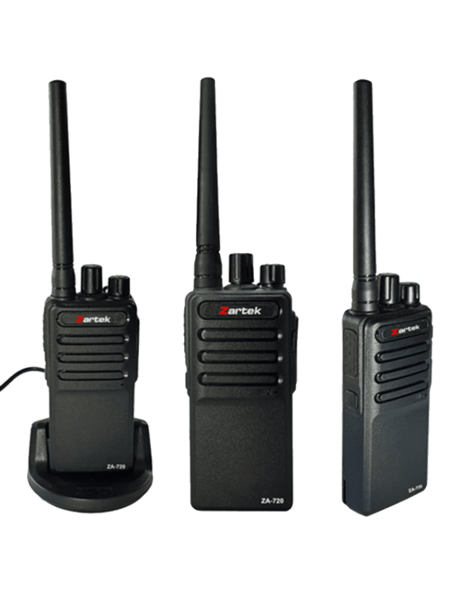

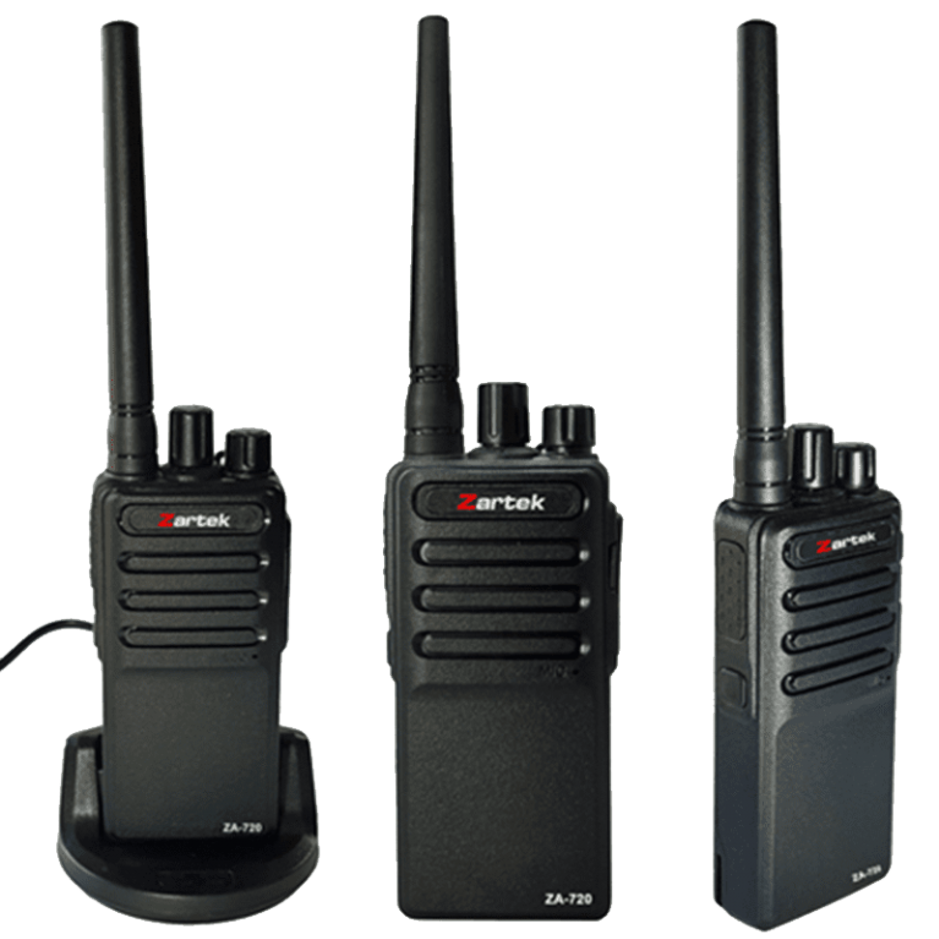

ZA-720 UHF HANDHELD TRANSCEIVER

• PRE-PROGRAMMED 16 CHANNELS
• POWER OUTPUT 500MW LICENSE FREE / 2W LICENCED
• TONES 50 CTCSS / 210 DCS
• DETACHABLE ANTENNA
• CLEAR LOUD AUDIO
• DURABLE ULTRA THIN CASING & LIGHTWEIGHT
• DESKTOP CRADLE CHARGER
• USB CHARGING PORT
• LONG BATTERY LIFE & LOW BATTERY ALERT
• CHANNEL ANNOUNCE
• MANUALLY SET VOX & SCAN USING BUTTONS
• EXTERNAL MICROPHONE / SPEAKER JACK
• PROGRAMMABLE FUNCTIONS VIA PC (OPTIONAL):
• CHANNELS, FREQUENCIES (1 – 8 , 1A – 5A) & TONES
• SQUELCH LEVELS 0 – 9
• TIME OUT TIMER OFF – 300S
• VOX ON / OFF , 5 SENSITIVITY LEVELS
• LOCAL SIREN
• SCANNING UPTO 16 CHANNELS
• APPROVED BY ICASA
• 1 YEAR LIMITED WARRANTY
• IDEAL FOR GENERAL USE, WAREHOUSES, OUTDOORS, HOTELS, EVENTS & MEDIUM DUTY USE.

RANGE: (TERRAIN DEPENDENT):
INDOORS: 600M-1.2KM
OUTDOORS: 2-6KM
ELEVATED LINE-OF-SIGHT: 10-30KM

UHF 446 & 464MHZ ON 0.5W (LICENSE FREE)
400 – 470MHZ ON 2W (LICENSE REQUIRED)

CHARGING:

DIRECT PLUG-IN USB

DESKTOP CHARGER STAND
2 METHODS OF CHARGING INCLUDED: PLUG-IN USB OR DESKTOP STAND
RED LED : CHARGING MODE, GREEN LED : FULL
CHARGE TIME: 3 HRS
OPERATING TIME (AVERAGE) ON 0.5W: 25 HRS ON 5:5:90 DUTY CYCLE

COMPATIBLE TO ALL LICENSE-FREE RADIOS, CHECK FACTORY CHANNEL SETTINGS TO LINK
446 MHZ (8 FREQ.) & 464 MHZ (5 FREQ.):
ZARTEK TX-8, ZA-758, ZA-758, ZA-725, ZA-705, ZA-708, COM8 & PRO8 RADIO (446 MHZ)
ZARTEK PRO5 & ZA-200 RADIO (MODEL# 21-1860AF) (464 MHZ)

INCLUDED ITEMS:
1 X HANDHELD UHF FM TRANSCEIVER
1 X DETACHABLE ANTENNA
1 X DESKTOP MAINS CHARGER
1 X LI-ION BATTERY PACK 1600MAH
1 X BELT CLIP
USERS MANUAL
